The world of automotive restoration is exciting. Many car enthusiasts seek better performance. They want to improve their classic cars. Consequently, the transmission is a key component. It defines how power reaches the wheels. The 700 r4 transmission remains a popular choice. It bridges the gap between old and new technology. This article explores why this unit is so valued. We will cover its history and benefits. Furthermore, we will discuss technical details. This guide helps you make informed decisions. You need to understand the mechanics involved. For instance, knowing the 700 r4 transmission specs and features is vital. You should also be aware of potential 700 r4 transmission problems and solutions. We will discuss choosing the right 700 r4 transmission rebuild kit. Additionally, we provide a basic 700 r4 transmission installation guide. Finally, we explore 700 r4 transmission performance upgrades. These insights ensure your project succeeds.

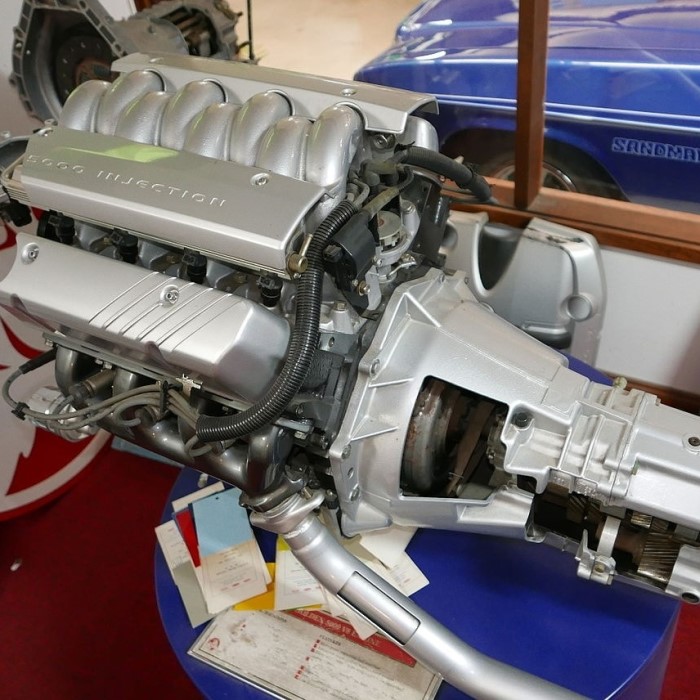

Understanding the Legacy of the 700R4
The 700R4 has a rich history. General Motors introduced it in 1982. It was a response to fuel economy needs. Consequently, it replaced the TH350. The 700R4 offered an overdrive gear. This was a major innovation at the time. It allowed for lower highway RPMs. Therefore, fuel efficiency improved significantly. Enthusiasts love this transmission for swaps. It fits many classic GM models. Furthermore, it is a robust unit.
First, consider the design evolution. Early models had some issues. However, GM improved the design over the years. By 1987, the unit was very reliable. They added an auxiliary valve body. This improved lubrication. Consequently, the transmission ran cooler. This is important for longevity. The 700R4 is a non-electronic transmission. It uses a TV cable for shifting. This makes it easy to install in older cars. You do not need a computer. Many restomod builders prefer this simplicity.
Additionally, the gear ratios are excellent. The First gear has a 3.06 ratio. This provides strong acceleration. It gets the car moving quickly. Then, the Overdrive gear is 0.70. This reduces engine speed on the highway. Your engine lasts longer. You also save gas. This combination is perfect for street rods. It offers the best of both worlds.
Moreover, the torque capacity is impressive. It can handle moderate power levels. Later versions are even stronger. The case is made of aluminum. This reduces weight. Therefore, the car handles better. The transmission is also compact. It fits in tight transmission tunnels. This versatility is a huge plus. Builders have used it in Chevelles and Camaros. It even fits some trucks. The legacy of the 700R4 is secure. It changed how we drive classics. It made overdrive accessible to everyone.
Key Specifications and Features
You must know the specs before buying. The 700 r4 transmission has specific dimensions. It is crucial to check these first. Consequently, you avoid fitting issues. The transmission length varies. The overall length is about 30.75 inches. However, this depends on the output shaft. You must measure your driveshaft. You might need to shorten or lengthen it.
First, look at the gear ratios. First gear is 3.06:1. Second gear is 1.63:1. Third gear is 1.00:1. Finally, Fourth gear is 0.70:1. This spread is wide. It offers great acceleration and cruising. The reverse gear is 2.29:1. These ratios suit street driving well. They also help with towing. The torque converter stall speed matters too. Stock converters stall around 1600-1800 RPM. However, you can choose higher stalls. This improves launch performance.
Furthermore, the fluid capacity is important. The transmission holds about 11 quarts of fluid. This includes the torque converter. Therefore, you need enough fluid on hand. The recommended fluid type is Dexron. Later versions recommend Dexron-VI. This fluid provides better protection. It resists heat better. Heat is the enemy of transmissions. Consequently, fluid choice is critical.

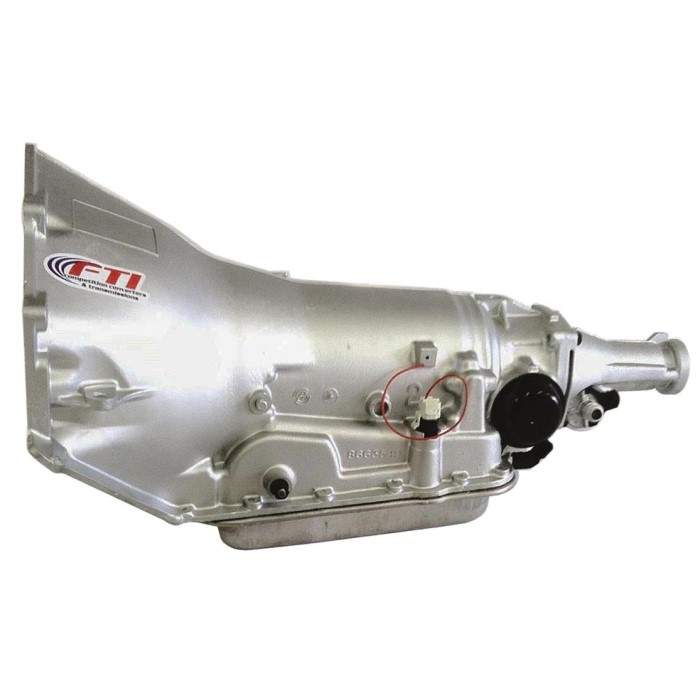

In addition, the transmission has a lockup converter. This feature improves fuel economy. It locks the converter clutch in high gear. This eliminates slippage. You need to wire this correctly. The lockup wiring can be complex. Some kits offer manual lockup switches. Others use pressure switches. The pressure switch activates automatically. This is a convenient feature.
Common Problems and Practical Solutions
No mechanical part is perfect. The 700 r4 transmission has known issues. However, you can fix them easily. Understanding these problems saves you money. It also prevents breakdowns. Consequently, you stay on the road longer.
First, watch for slippage. This happens between gears. The engine revs but the car does not move. This indicates a worn clutch pack. The 3-4 clutch pack is a weak spot. It is thin and gets hot. Therefore, it burns easily. You can fix this by upgrading the clutches. High-performance clutches handle heat better. You might also need a better servo. The servo applies pressure to the clutches. A “Corvette” servo is a popular upgrade. It applies pressure more firmly. This reduces slippage.
Furthermore, shifting issues are common. The car might shift too early or too late. This is often a TV cable problem. The TV cable controls shift points. It connects to the throttle body. If it is misadjusted, the transmission suffers. The internal pressure becomes wrong. Consequently, the clutches burn up. You must adjust the TV cable carefully. There is a specific procedure for this. Follow the guide exactly. This adjustment is crucial for transmission life.
In addition, check for leaks. The rear seal often leaks. This seal holds the driveshaft yoke. It dries out over time. Therefore, replace it during installation. It is a cheap part. The pan gasket can also leak. Make sure the bolts are tight. However, do not over-tighten them. Over-tightening warps the pan. This causes more leaks.

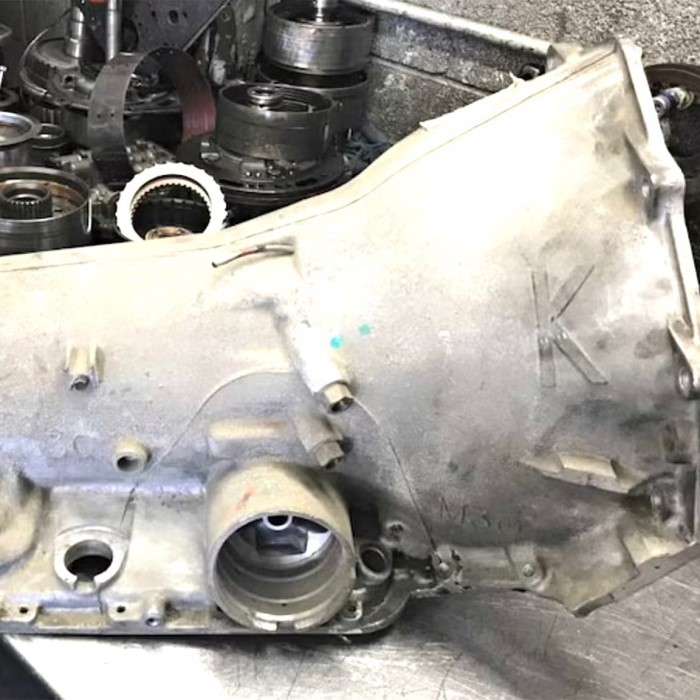

Selecting the Right Rebuild Kit
Many builders choose to rebuild. This saves money and ensures quality. You need a good 700 r4 transmission rebuild kit. Several types of kits exist. Consequently, you must choose wisely. The right kit depends on your goals. Are you building a street rod? Do you want a drag racer?
First, consider the friction material. Most kits use paper friction clutches. These are good for stock builds. However, they can slip under high power. High-performance kits use “Red” or “Blue” clutches. These materials grip better. They withstand higher temperatures. Therefore, choose a kit with high-performance clutches. This adds a safety margin. It is worth the extra cost.
Furthermore, look at the steel plates. The steels need to be flat. Warped steels cause wobble. This leads to failure. Some kits include new steels. Others reuse the old ones. It is best to replace the steels. Measure them for flatness. Use a surface plate if possible. New steels ensure a good friction surface.
In addition, check the rubber seals. The kit should include all O-rings. It should have lip seals too. These seals keep fluid inside. They prevent pressure leaks. Old seals become hard and brittle. They crack easily. Consequently, the transmission loses pressure. Make sure the kit has the pump seal. The pump gasket is also important. A good seal kit is vital for longevity.
Moreover, consider the gaskets and filters. A quality filter is a must. It cleans the fluid. Some kits come with cheap filters. Avoid those. Buy a name-brand filter. The pan gasket is also critical. Rubber gaskets are best. Cork gaskets can leak. They shrink over time. A rubber gasket seals better. It also seals multiple times. This is useful for adjustments.
A Comprehensive Installation Guide
Installation is a big step. You need a 700 r4 transmission installation guide. This section provides a summary. However, always consult a manual. Safety is your top priority. You are dealing with heavy parts.
First, remove the old transmission. Disconnect the battery first. This prevents electrical shorts. Then, remove the driveshaft. Catch the fluid that spills. Support the engine with a brace. Do not let the engine hang. The engine mounts can break. Use a transmission jack to lower the old unit. It is very heavy. Keep your back straight.
Furthermore, inspect the engine plate. Check for cracks or bends. Install the new flexplate if needed. The torque converter bolts to the flexplate. Ensure the bolts are the correct length. They should not bottom out. If they are too long, they will damage the converter. This is a critical check. Use thread locker on these bolts.
In addition, prepare the new transmission. Install the torque converter. Push it into the pump. Spin it until it seats fully. You will feel it drop in. There are two steps to seating. If it is not seated, you will break the pump. This is a very expensive mistake. Take your time here.
Moreover, mate the transmission to the engine. The bellhousing bolts must thread easily. Do not force them. Use the bolts to pull the transmission in. Do not use the bellhousing bolts to draw it up crooked. This can crack the case. Tighten the bolts in a cross pattern. This ensures even pressure.

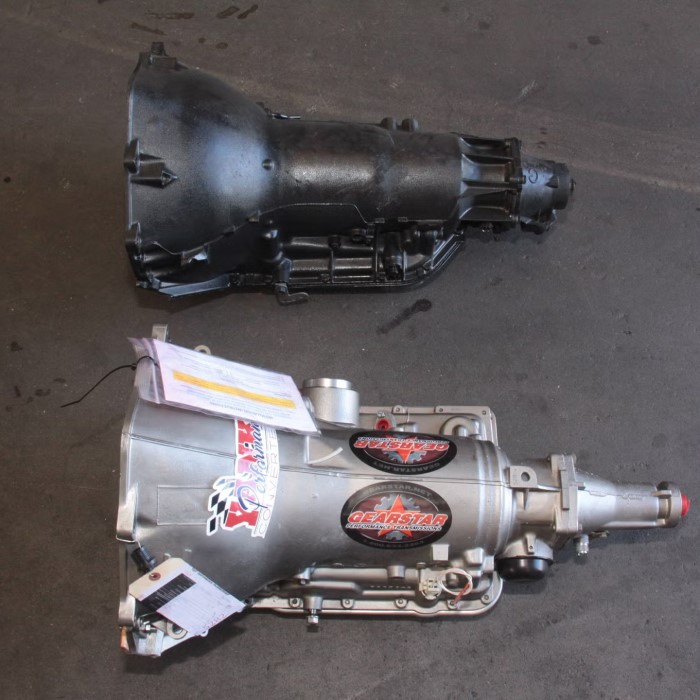

Performance Upgrades for Maximum Power
Stock transmissions are good. But they can be better. Many owners want 700 r4 transmission performance upgrades. These modifications increase durability. They also improve shifting speed. Consequently, the car becomes more fun to drive.

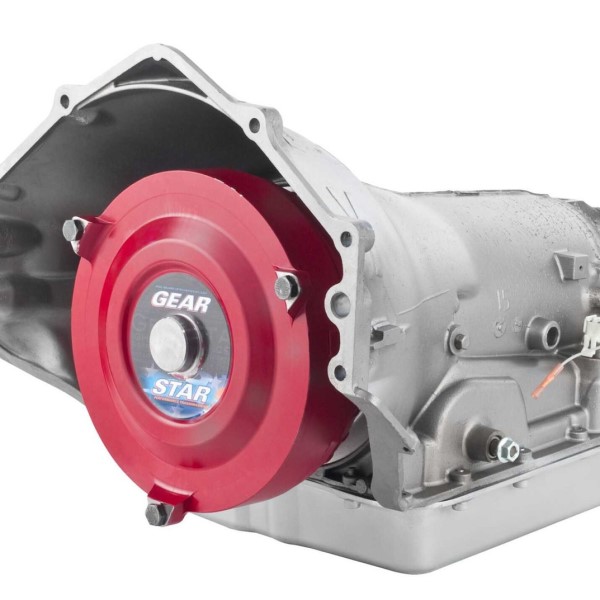

First, upgrade the torque converter. Stock converters have a low stall speed. This kills acceleration. A higher stall converter allows higher launch RPMs. The engine hits its power band sooner. Therefore, the car launches harder. Choose a stall speed that matches your camshaft. A big cam needs a higher stall. This maximizes the engine’s potential.
Furthermore, consider a shift kit. The valve body controls shifts. Factory shifts are soft. This softness wears out clutches. A shift kit reroutes fluid. It makes shifts faster and firmer. This reduces clutch slippage. Consequently, the transmission runs cooler. It is better for performance driving. There are many shift kit stages. Choose a street/strip kit for daily driving.
In addition, upgrade the servo. The servo applies the intermediate clutch. The stock servo is small. It provides limited apply pressure. A Corvette servo is larger. It provides more surface area. This increases apply pressure. The 2-3 shift becomes much firmer. This upgrade is cheap and easy. You can install it externally. It makes a big difference in feel.
Moreover, improve the cooling system. Heat kills transmissions. Add an auxiliary transmission cooler. This is a small radiator. It mounts in front of the radiator. Fluid passes through it. Air cools the fluid. This is essential for towing or racing. It keeps fluid temperatures low. Low temperature extends fluid life. It also protects internal seals.
Essential Maintenance Tips for Longevity
Your new transmission is installed. Now you must maintain it. Proper care ensures a long life. The 700 r4 transmission is durable. However, neglect causes failure. Follow these simple maintenance tips.
First, check the fluid often. The fluid is the lifeblood of the transmission. It provides hydraulic pressure. It also cools the parts. Check the level with the engine running. The fluid should be pink and clear. Dark fluid indicates burn damage. Burnt fluid smells like toast. If you smell this, stop driving. Check the fluid immediately.
Furthermore, change the fluid regularly. Old fluid loses its viscosity. It stops lubricating effectively. Most experts recommend changing it every 30,000 miles. If you drive hard, change it sooner. Use high-quality Dexron fluid. Do not overfill the transmission. Too much fluid causes foaming. Foam does not lubricate well. It causes erratic shifting.
In addition, inspect the cooler lines. The lines carry fluid to the radiator. They are made of steel or rubber. Steel lines can rust. Rubber lines can crack. A burst line drains the fluid fast. This ruins the transmission in minutes. Look for wet spots on the lines. Replace them if they look old. It is a cheap insurance policy.
Moreover, watch your driving habits. Do not shift into drive while revving. This shocks the drivetrain. Avoid neutral drops. These are terrible for the car. Come to a full stop before shifting to reverse. This saves the clutches and bands. Treat the car with respect. It will last longer.
FAQ: Answering Your Top Questions
Many people have questions about this transmission. Here are the most common ones. We provide clear answers.
Which is better, 4L60E or 700R4?
This depends on your goals. The 4L60E is the electronic successor. It requires a computer (PCM). It allows for precise electronic control. Therefore, it is better for modern engines. The 700R4 is hydraulic. It does not need a computer. It uses a TV cable. This makes it easier for swaps. You do not need wiring harnesses. Consequently, the 700R4 is better for classic cars. It is simpler to install. The 4L60E is better for late-model fuel injection. Both have similar strength. The choice is about control preference.
How much horsepower can a 700 R4 transmission hold?
A stock 700R4 can handle about 450 lb-ft of torque. This is sufficient for mild street engines. However, the limit depends on the condition. A worn transmission will fail sooner. A rebuilt unit with upgrades handles more. With upgraded clutches and a shift kit, it can hold 500-600 horsepower. You need a strong torque converter too. For extreme power over 700 HP, look elsewhere. The case might flex. But for most street cars, it is strong enough. It handles the power reliably.
What are common problems with 700R4?
The most common problem is the 3-4 clutch pack burn. This happens due to slippage. It is a design weak point. Another issue is TV cable adjustment. If it is wrong, the transmission dies quickly. Broken sun shells are also common. The shell holds the planetary gears. It can crack. This causes a loss of reverse. Finally, pump whine is an issue. It happens if the converter is not seated right. These problems are fixable. Regular maintenance prevents most of them.
Conclusion and Final Thoughts
We have covered a lot of ground. The 700 r4 transmission is a legendary unit. It offers great value for enthusiasts. It combines overdrive with strong performance. This makes it ideal for restomods. You can enjoy your classic car on the highway. The engine runs quieter and cooler. You save fuel without losing fun.
The technical details are important. You learned the 700 r4 transmission specs and features. You understand the ratios and the lockup feature. We also discussed reliability. The 700 r4 transmission problems and solutions are manageable. You know how to adjust the TV cable. You know to watch for the 3-4 clutch. We looked at the rebuild process. Choosing the correct 700 r4 transmission rebuild kit is vital. Quality parts lead to a quality build.
Furthermore, we provided practical advice. The 700 r4 transmission installation guide highlights the key steps. Seating the torque converter is crucial. Do not rush the process. We also explored speed. The 700 r4 transmission performance upgrades unlock potential. Shift kits and servos make a big difference. They improve the driving experience. Finally, maintenance is key. Regular fluid changes save transmissions.
In conclusion, this transmission is a smart upgrade. It transforms a classic car. It makes it drivable in the modern world. You get the best of both worlds. The reliability is proven. The parts are affordable. The support community is large. You are never alone with this project. We hope this article helped you. Now, go enjoy your ride. Listen to that overdrive purr. You made a great choice.
