Common Issues with Universal Transmission Cooler and Solutions

Common Issues with Universal Transmission Cooler

Many vehicle owners choose a universal transmission cooler for better towing performance. However, several problems occur frequently. You need to know these issues.

First, improper mounting causes leaks. The cooler attaches to the radiator or frame. If brackets are weak, vibration loosens them. Over time, fluid escapes.

Second, incorrect hose routing leads to flow restrictions. Hoses bend too sharply. Transmission fluid cannot circulate. The cooler then fails to reduce heat.

Third, many people ignore the size requirement. They buy a cooler that is too small. It cannot handle the heat load. This results in overheating.

Fourth, air flow blockage is common. If you install the cooler behind a grille or bumper, air must pass freely. Obstructions reduce cooling.

Fifth, using wrong fittings creates pressure loss. Universal kits come with adapters. Some owners force incorrect sizes. This causes leaks or low flow.

Sixth, mixing coolant types damages the system. Some coolers need specific fluids. Using plain water or wrong additive leads to corrosion.

To avoid these problems, follow a universal transmission cooler installation guide. Learn how to choose a universal transmission cooler. Research universal transmission cooler reviews 2026. Understand the benefits of using a universal transmission cooler.

The best universal transmission cooler for trucks is durable and correctly sized. Choose one that matches your vehicle’s transmission.

Therefore, education is key. Read the manual. Watch installation videos. Ask experienced mechanics.

By doing this, you prevent issues. Your transmission stays cool. Your vehicle runs reliably.

Understanding Cooling Needs for Trucks

Trucks face higher transmission heat than cars. Towing and hauling increase load. The transmission fluid temperature rises quickly.

First, normal operating temperature is around 175°F. Under heavy load, it can exceed 240°F. At that point, fluid breaks down.

Second, a factory cooler may not be enough. Many trucks come with a small cooler inside the radiator. This shared system warms the fluid in cold weather, but in hot conditions it cannot keep up.

Third, extreme heat shortens transmission life. For every 20°F above 175°F, fluid life halves. That is why an auxiliary cooler matters.

Fourth, airflow affects cooling. Trucks have limited space. You need a cooler positioned where air moves.

Fifth, cooler type matters. Tube‑fin coolers are affordable. Plate‑fin coolers are more efficient. For heavy use, plate‑fin is better.

Sixth, consider the transmission type. Some transmissions have built‑in thermostats. Others need an external one.

Therefore, assess your driving pattern. Do you tow often? Do you live in a hot climate? If yes, invest in a good cooler.

A best universal transmission cooler for trucks will match your load. It will reduce temperatures by 30–50°F.

In addition, monitor fluid temperature with a gauge. This gives real‑time feedback. You can adjust driving accordingly.

By understanding cooling needs, you make a smarter choice.

Installation Mistakes and How to Fix Them

Installation errors are the top cause of cooler failure. Here are common mistakes and solutions.

First, mounting the cooler too low. If it sits below the transmission, air cannot flow over it. Fix it by mounting it in front of the radiator or behind a grille.

Second, using undersized hoses. The cooler inlet and outlet may be 3/8 inch. If you use 1/4 inch hose, flow is restricted. Always match hose size to fittings.

Third, failing to install a thermostat. Without one, fluid stays cold in winter. This can damage the transmission. Add an in‑line thermostat.

Fourth, routing hoses near hot exhaust pipes. Heat from the engine can be absorbed. Keep hoses away from heat sources.

Fifth, not bleeding air from the system. Air pockets prevent proper flow. After installation, run the engine. Check for bubbles.

Sixth, using poor quality clamps. Worm‑gear clamps can cut hoses. Use spring‑type or fuel‑injection clamps.

Seventh, ignoring the flow direction. Most coolers have an arrow. Connect the outlet of the transmission to the inlet of the cooler.

To avoid these mistakes, follow a universal transmission cooler installation guide step by step.

Test the system before driving. Look for leaks. Listen for unusual noises.

By fixing these issues, your cooler will work efficiently.

How to Choose the Right Cooler for Your Vehicle

Selecting a cooler involves several factors. Do not buy the first one you see.

First, consider cooling capacity. It is measured in BTU or GPM. For trucks towing heavy loads, a high‑capacity cooler is necessary.

Second, measure available space. The cooler must fit in front of the radiator, condenser, or behind the grille. Check dimensions.

Third, choose between tube‑fin and plate‑fin. Plate‑fin is more efficient but may be thicker. Tube‑fin is easier to mount.

Fourth, look for an integrated thermostat. Some coolers have one built in. Others require a separate unit.

Fifth, verify port sizes. Most universal coolers use 3/8 inch or 1/2 inch NPT. Your transmission lines must match.

Sixth, read reviews. Base your decision on universal transmission cooler reviews 2026. Real owners share their experiences.

Seventh, consider brand reputation. Brands like B&M, Derale, and Hayden are trusted.

Eighth, think about future upgrades. If you plan to add a larger cooler later, buy one that can expand.

In addition, think about installation difficulty. Some kits come with brackets and hoses. Others need extra parts.

For example, the best universal transmission cooler for trucks often comes with a mounting kit. It also includes detailed instructions.

Therefore, take time to research. Compare features. Check compatibility.

By choosing wisely, you avoid future headaches.

Signs of a Failing Cooler

A failing cooler shows clear symptoms. Recognize them early.

First, transmission temperature rises quickly. The gauge climbs to red. This means the cooler cannot shed heat.

Second, fluid leaks appear. Puddles under the vehicle indicate a hole or loose connection.

Third, the transmission slips or shifts harshly. Hot fluid causes delayed engagement.

Fourth, burnt smell from the transmission. This means fluid has overheated.

Fifth, cooler fins are damaged. Stones or debris can block airflow. Bent fins reduce efficiency.

Sixth, the engine temperature also rises. Some coolers share the radiator fan. A blockage affects both.

Seventh, you see fluid in the radiator or coolant in the transmission. This indicates a failed internal cooler. An external cooler prevents this.

If you notice any sign, stop driving. Check the cooler for damage. Clean the fins. Tighten fittings.

Sometimes the cooler is too small for your load. Replace it with a larger one.

Regular inspection prevents major transmission failure. Look at the cooler during oil changes.

By staying alert, you save money on repairs.

Maintenance Tips for Longevity

A transmission cooler requires little maintenance. But neglecting it shortens life.

First, clean the cooler fins regularly. Use a gentle water spray. Avoid high pressure that bends fins.

Second, check hose connections. Look for cracks or looseness. Replace hoses every three years.

Third, inspect the mounting brackets. Rust or vibration can weaken them. Tighten or replace as needed.

Fourth, flush the cooler when you change transmission fluid. This removes debris that blocks flow.

Fifth, use a filter in the transmission line. It catches particles before they reach the cooler.

Sixth, monitor fluid level. Low fluid means a leak. Fix it promptly.

Seventh, drive with care. Avoid deep water or mud. Debris can clog the cooler.

Eighth, store your vehicle indoors if possible. Extreme cold can cause condensation.

By following these tips, the cooler lasts longer.

For example, many owners report 10 years of trouble‑free use. They clean the cooler once a year.

Therefore, make maintenance a routine. Your transmission will thank you.

Comparing Tube-Fin vs Plate-Fin Coolers

Two main types exist. Each has pros and cons.

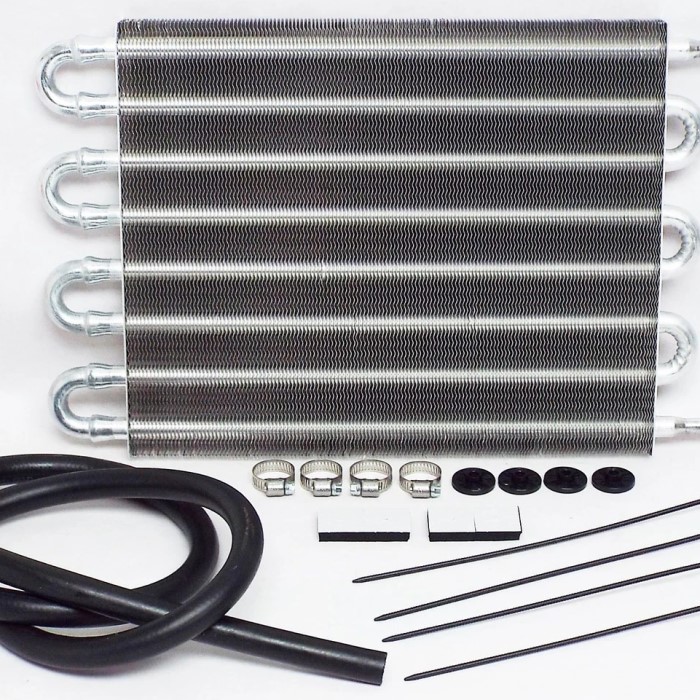

Tube‑fin coolers have a single tube bent back and forth. Fins are attached to the tube. They are simple and cheap.

Plate‑fin coolers use stacked plates with internal passages. They offer more surface area. They cool better.

First, tube‑fin coolers are lighter. They fit in tight spaces. However, they are less efficient.

Second, plate‑fin coolers dissipate heat faster. They reduce temperature by an extra 10–15°F.

Third, tube‑fin coolers are easier to clean. You can straighten bent fins with a comb.

Fourth, plate‑fin coolers are more durable. They resist puncture. The internal design handles higher pressure.

Fifth, cost varies. Tube‑fin is cheaper. Plate‑fin costs about 30–50% more.

Sixth, size matters. Plate‑fin coolers are thicker. They may not fit behind a grille.

For daily driving and light towing, a tube‑fin cooler works fine. For heavy towing or racing, choose plate‑fin.

Many truck owners prefer plate‑fin because of the benefits of using a universal transmission cooler at high loads.

In conclusion, select based on your usage. Both types are reliable if installed correctly.

Real Benefits of Adding a Transmission Cooler

Adding a universal transmission cooler provides clear advantages.

First, it extends transmission life. Heat is the biggest enemy. A cooler reduces wear.

Second, it improves towing capacity. The transmission can handle heavy loads without overheating.

Third, it protects the torque converter. Overheating damages seals. Cooler fluid keeps them intact.

Fourth, it reduces the risk of breakdown. Hot transmissions fail suddenly. A cooler prevents that.

Fifth, it maintains fluid quality. Lower temperatures reduce oxidation. Fluid lasts longer.

Sixth, it helps the engine run cooler. A cooler transmission reduces overall heat load.

Seventh, it is affordable. A good cooler costs between $and$200. Compare that to a transmission rebuild.

Eighth, installation is straightforward. DIYers can do it in a few hours with basic tools.

Ninth, it gives peace of mind. You drive without worrying about overheating.

For these reasons, many owners consider it a must‑have.

Research the best universal transmission cooler for trucks before buying. Follow a universal transmission cooler installation guide. Learn how to choose a universal transmission cooler. Read universal transmission cooler reviews 2026. Understand the benefits of using a universal transmission cooler.

By doing this, you protect your vehicle. You enjoy reliable performance for years.
