Diagnosing Input Shaft Seal Leaks: Tips for Car Owners

Understanding the Input Shaft Seal

The input shaft seal is a small rubber component. It sits at the front of the transmission. It seals the point where the input shaft enters the transmission case. This seal prevents transmission fluid from leaking out. It also keeps dirt and debris from entering. This is a critical function. Without this seal, fluid loss occurs quickly. Low fluid leads to transmission damage. Repair costs then become very high. Many car owners overlook this part. They only notice it when a leak appears. Understanding the input shaft seal replacement cost helps you budget for repairs.

You should also know how to install input shaft seal properly. If you recognize symptoms of a bad input shaft seal, you can act early. Knowing input shaft seal leak causes helps you prevent future problems. Finally, choose best input shaft seal brands for reliability. This article covers everything you need. Let us start with the basics.

The Function of a Shaft Seal

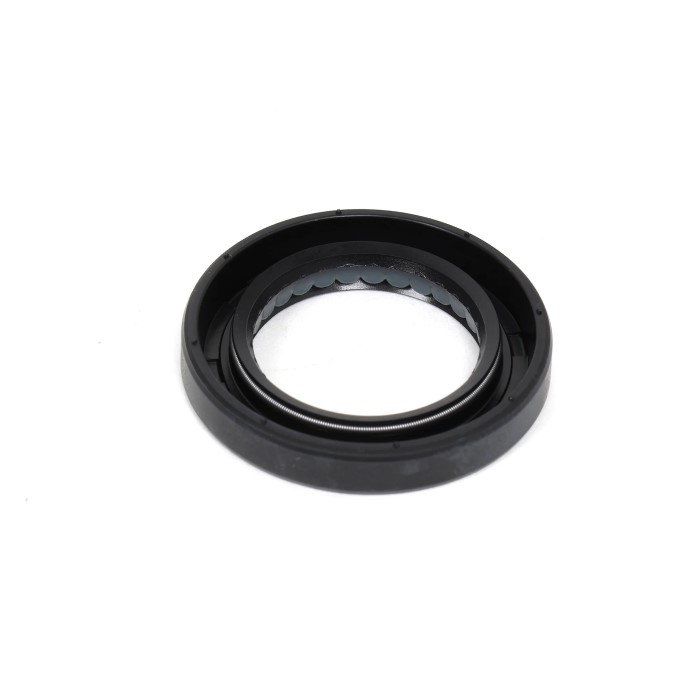

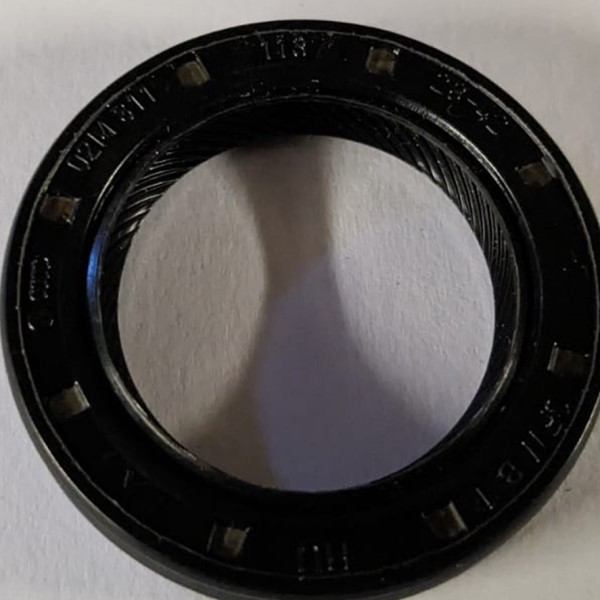

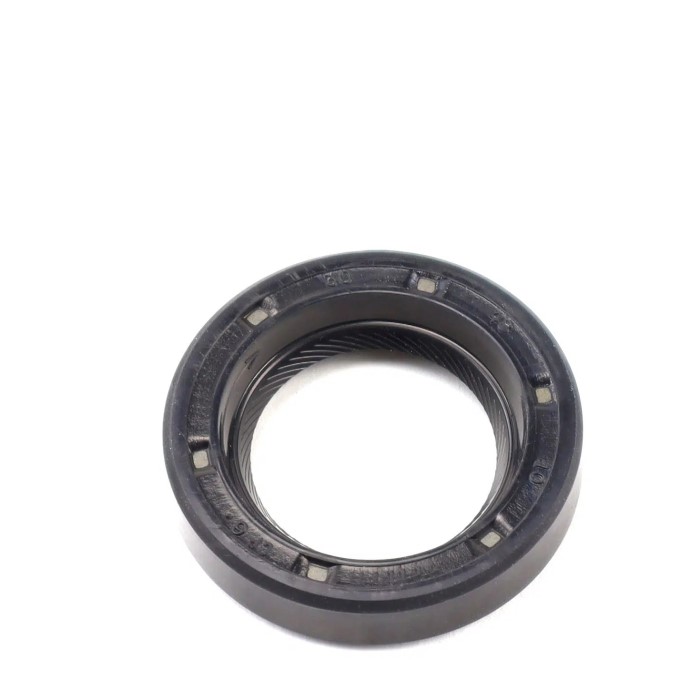

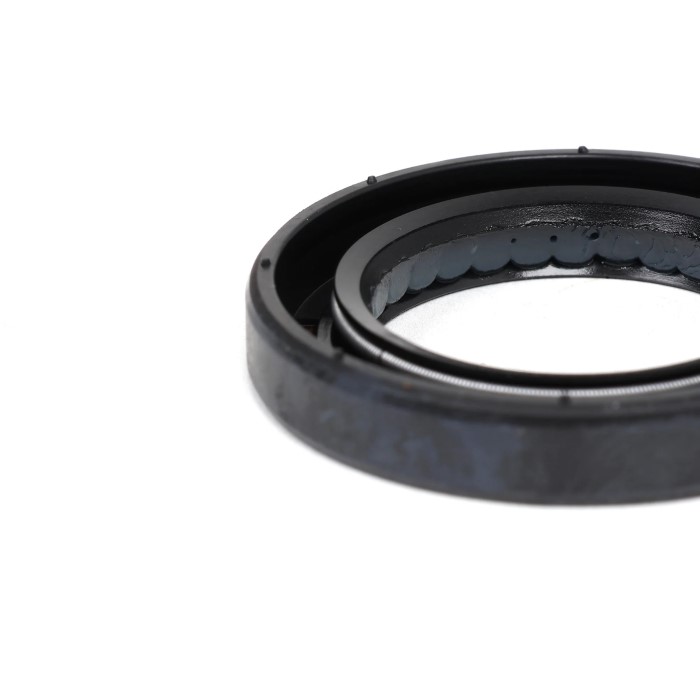

So, what is the function of a shaft seal? It performs a simple but vital job. It prevents fluid from escaping the transmission. The input shaft rotates at high speed. The seal rides on this shaft. It creates a tight barrier. It uses a spring-loaded lip. This lip presses against the shaft. It keeps fluid inside. It also blocks contamination. Dirt and water can damage transmission internals. The seal protects against this. Most seals are made of rubber or silicone. They resist heat and oil. They last for many years. However, they eventually wear out. Heat cycles harden the rubber. This causes cracking. The seal then fails. Fluid begins to leak. This leads to low fluid levels. Low fluid causes gear slipping. It can also cause gear grinding. Eventually, the transmission may fail completely. So, the seal is a simple part. Yet, it protects an expensive component.

Common Causes of Seal Failure

Several factors cause input shaft seal leak causes. One major cause is age. Rubber hardens over time. It loses its flexibility. This happens after many heat cycles. Another cause is contamination. Dirty transmission fluid contains debris. This debris wears down the seal lip. It creates grooves. Fluid then escapes through these grooves. Improper installation is another cause. If you install a seal crookedly, it leaks. You must use the correct tools. You must also lubricate the seal lip. Dry installation tears the rubber. A worn input shaft bearing also causes leaks.

The shaft moves excessively. This movement wears the seal unevenly. It creates a gap. Fluid leaks through this gap. Overfilling the transmission causes pressure. Excess pressure pushes fluid past the seal. This is a common mistake. Always check fluid levels properly. Using the wrong fluid type also damages seals. Some fluids contain additives. These additives attack rubber. Always use the manufacturer’s recommended fluid.

Recognizing the Symptoms

Identifying symptoms of a bad input shaft seal early is key. The most obvious symptom is fluid on the ground. You see red or brown puddles under your car. The leak is often near the bell housing area. Another symptom is a burning smell. Transmission fluid burns easily. It drips onto the exhaust. This produces a distinct odor. You might also notice low fluid levels. Check your dipstick regularly. If fluid drops quickly, you have a leak. A slipping transmission is another sign. The engine revs but the car moves slowly.

This happens because fluid pressure is low. You might also hear whining noises. Low fluid causes pump cavitation. The pump struggles to circulate fluid. This creates a whining sound. Another symptom is delayed engagement. The car hesitates when you shift into gear. This is a sign of low fluid. Do not ignore these signs. A small leak becomes a big problem. Fix it quickly.

How to Diagnose the Leak

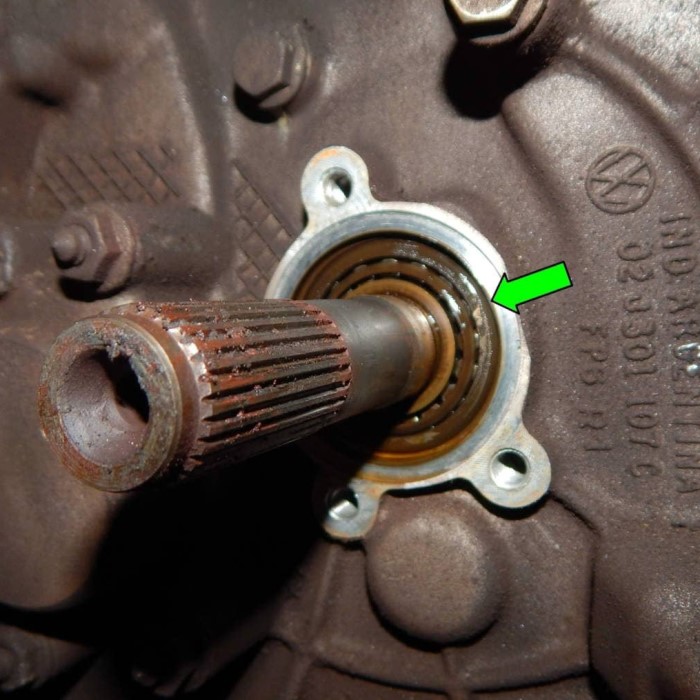

Diagnosis requires a methodical approach. First, park the car on a level surface. Clean the transmission area thoroughly. Use a degreaser and a rag. This removes old oil and dirt. Then, start the engine. Let it run for a few minutes. Look for fresh fluid. Trace the fluid to its source. The input shaft seal is at the front. It is behind the flywheel or flexplate. You might not see it directly. You can use a mirror to inspect. Another method uses fluorescent dye. Add the dye to the transmission fluid. Drive the car for a short distance. Then, use a UV light.

The dye glows at the leak point. This makes diagnosis easy. A pressure test is also helpful. A shop can pressurize the transmission. This forces fluid out of the leak. You see the exact location. Always confirm the source. Valve cover leaks can drip onto the transmission. This looks like a seal leak. Do not confuse them.

The Importance of Timely Repair

Delaying repair is a bad idea. A leaking seal causes fluid loss. Low fluid leads to overheating. Heat destroys transmission components. You then face major repairs. A simple seal replacement costs little. A full transmission rebuild costs thousands. So, act quickly. How much does it cost to replace a transfer case input shaft seal? The price varies. For a standard transmission, the part is cheap. The seal costs between $5and$30. Labor costs are higher. The job requires removing the transmission. This takes several hours. Total cost ranges from 400 $to$800. For a transfer case, the job is similar. The cost is often in the same range. Always get a quote before proceeding. Some shops charge more than others. DIY repair saves money. But the job is not easy. It requires jack stands and tools. Only attempt it if you are experienced.

Installation Process Explained

If you choose DIY, learn how to install input shaft seal correctly. First, support the transmission. Use a jack. Remove the transmission from the car. This is the hardest part. Then, remove the old seal. Use a seal puller tool. Do not damage the housing. Clean the housing bore thoroughly. Remove all old seal remnants. Apply a thin layer of sealant to the outer edge. This prevents external leaks. Position the new seal. Use a seal driver tool. Tap it in evenly. Do not tilt the seal. An angled seal leaks immediately. Lubricate the seal lip with transmission fluid. This prevents tearing during reassembly. Reinstall the transmission. Tighten all bolts to spec. Fill the transmission with correct fluid. Check for leaks. Start the engine. Let it idle. Inspect the seal area. If no leak appears, the job is successful.

Selecting the Best Brands

Choosing best input shaft seal brands ensures longevity. OEM seals are often the best choice. They match the original part exactly. They use the correct rubber compound. Aftermarket brands like Timken and National are also good. They offer high-quality materials. Avoid cheap generic seals. They use inferior rubber. They crack quickly. You save money upfront. But you pay more later. Always check reviews before buying. Some brands have better reputations than others. Look for seals with a stainless steel spring. This spring resists corrosion. It maintains tension longer. Also, look for seals with a PTFE lip. PTFE lasts longer than rubber. It handles heat better. It also handles contamination better. Spend a few extra dollars now. It saves you time and effort later.

Prevention and Maintenance Tips

Prevention is always better than repair. Regular transmission maintenance extends seal life. Change the fluid at recommended intervals. Old fluid contains abrasive particles. These particles wear the seal lip. Also, use the correct fluid type. Wrong fluid damages the rubber. Avoid overfilling the transmission. Excess pressure forces fluid past the seal. Check the transmission mounts regularly. Worn mounts allow excessive movement. This movement strains the seal. It causes uneven wear. Address any vibration issues quickly. Vibrations can damage the seal. Keep the underside of your car clean. Dirt and grime trap moisture. This accelerates rubber hardening. A simple wash helps. Inspect the seal during other repairs. If you replace the clutch or flywheel, examine the seal. Replace it as a preventive measure. It adds little cost. It saves future labor.

FAQ

What is the function of a shaft seal?
The shaft seal prevents transmission fluid from leaking out. It also blocks dirt and debris from entering the transmission. It rides on the rotating input shaft to maintain a tight barrier.

What are the symptoms of a bad shaft seal?
Common symptoms include fluid puddles under the car, a burning smell, low transmission fluid levels, slipping gears, whining noises, and delayed engagement when shifting.

How much does it cost to replace a transfer case input shaft seal?
The part costs between 5 and 30. Labor costs range from $to$700. Total replacement cost is typically $to$800. DIY repair costs only the price of the seal.

Conclusion: Take Action Today

In conclusion, the input shaft seal is a small part. It protects a big investment. A leaking seal demands immediate attention. Learn the input shaft seal replacement cost for your vehicle. Understand how to install input shaft seal properly. Recognize symptoms of a bad input shaft seal early. Study input shaft seal leak causes to prevent recurrence. Invest in best input shaft seal brands for reliability. Do not ignore the warning signs. A dripping puddle is a clear message. Your car needs your help. Fix the leak now. Save your transmission. Save your money. Drive with confidence knowing your car is in good condition. Your input shaft seal is your first line of defense.
