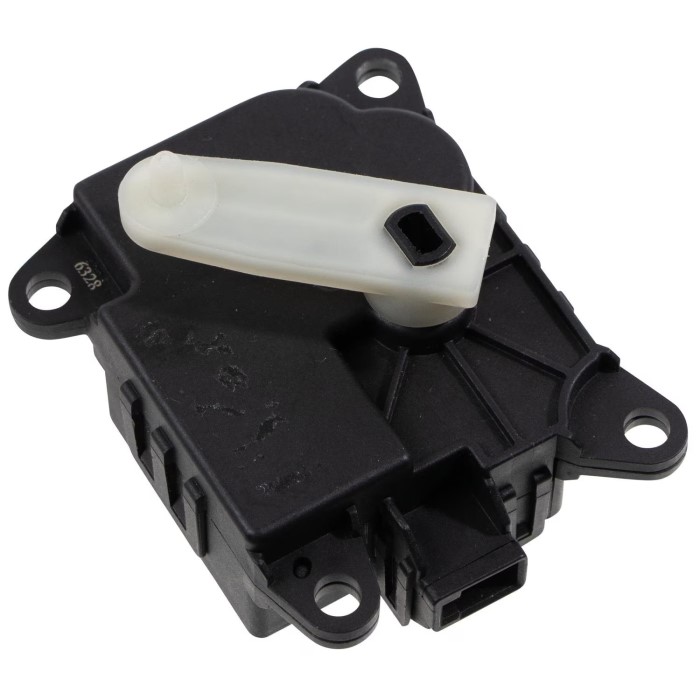

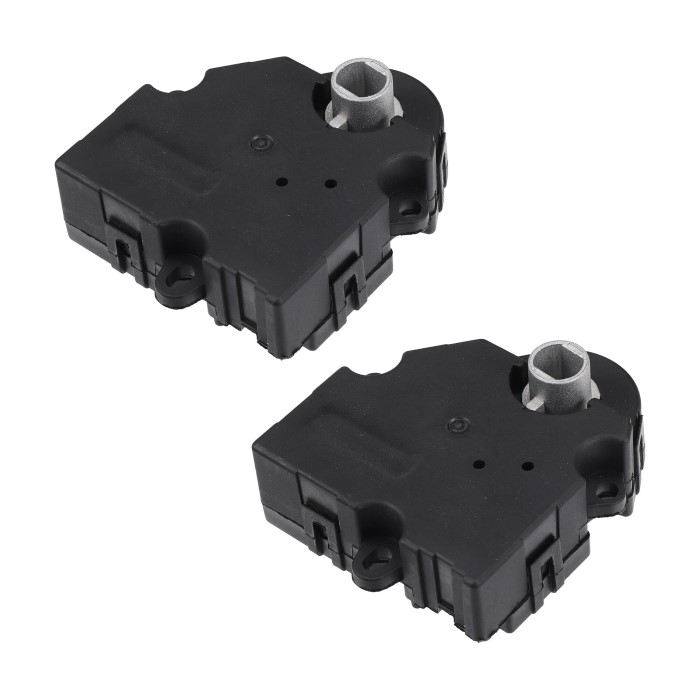

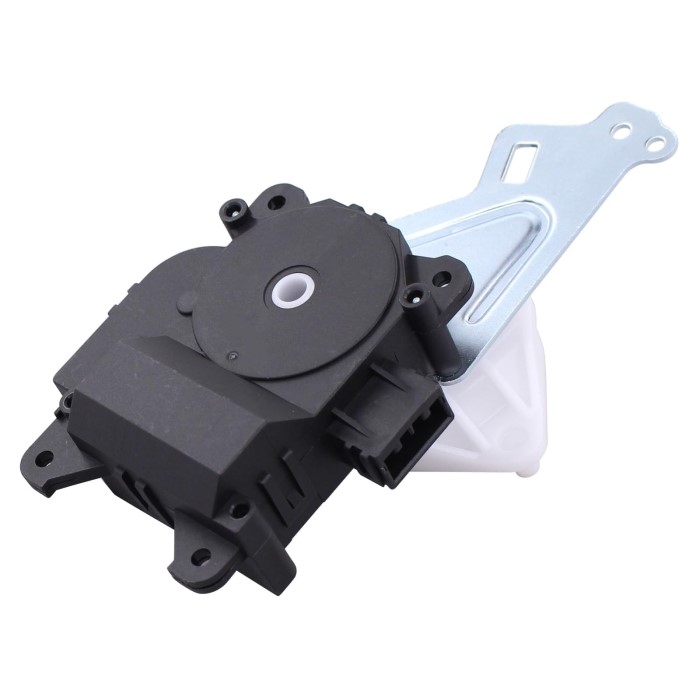

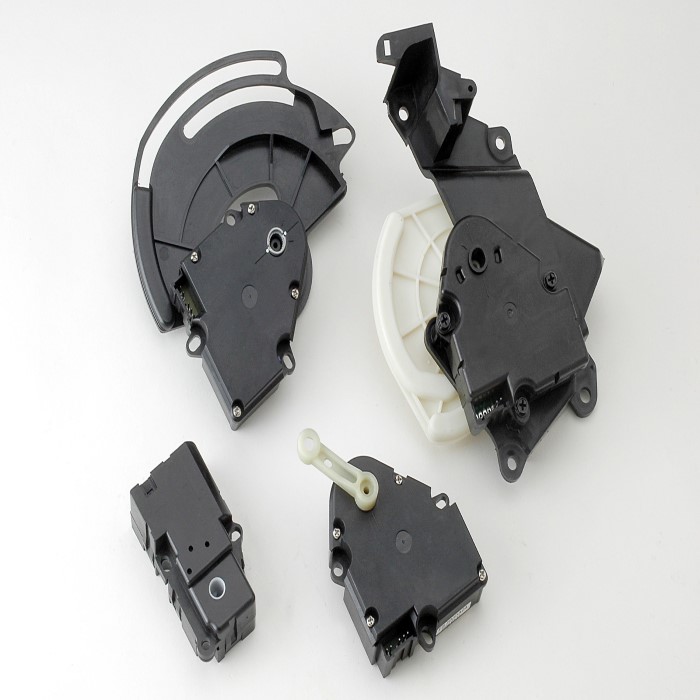

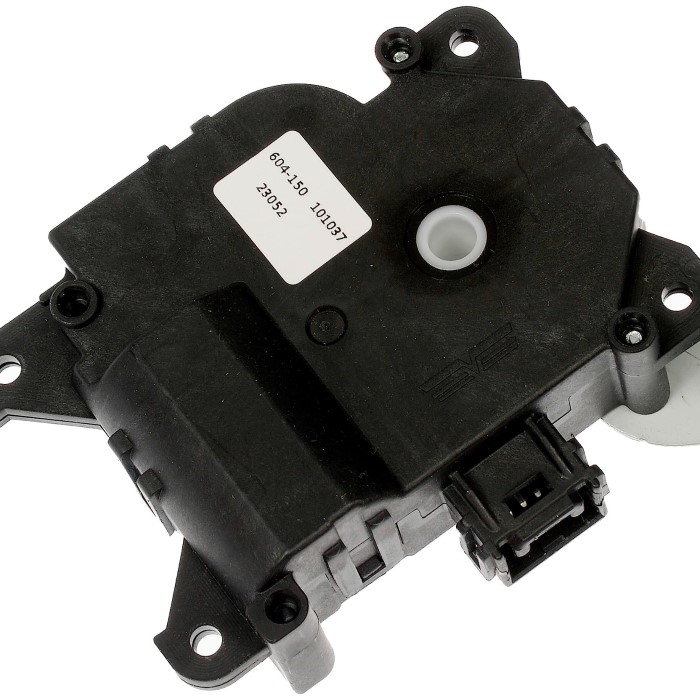

What Is an Air Door Actuator?
Your car’s climate system relies on small doors inside the dashboard. These doors direct airflow. They mix hot and cold air. They also change the vent mode. An air door actuator is the motor that moves these doors. It receives signals from your HVAC control panel. Then, it rotates a small gear or arm. This opens or closes the door. Without it, you lose control over temperature. You might also lose control over air direction. Therefore, this part is critical for comfort. Many drivers ignore it until a problem appears.
Then, they feel frustrated. But understanding this part helps. It is a simple electromechanical device. It contains a small DC motor, plastic gears, and a position sensor. Some actuators use a potentiometer. Others use a hall effect sensor. When you change the temperature dial, the system sends voltage. The actuator moves to the correct position. It stops when the sensor reads the right angle. This cycle happens every time you adjust the climate. So, the air door actuator works constantly. Over time, gears wear out.
The motor may fail. Then, you experience air door actuator symptoms. You need to know how to test air door actuator to confirm. You also need to find the air door actuator location in car. This guide helps you. It also covers air door actuator replacement and provides an air door actuator installation guide. Let us start with the basics. This knowledge saves you time and money.
Common Symptoms
How do you know the actuator is failing? Look for these clear air door actuator symptoms. First, you hear a clicking noise behind the dashboard. This sound comes from broken plastic gears. The motor tries to move, but the gear slips. Second, you feel inconsistent temperature. One side blows hot, the other blows cold. This happens often in dual-zone systems. Third, the air only comes out of one vent. Defrost, dash, or floor vents may stop working. Fourth, the temperature changes slowly or not at all. Fifth, you hear a rattling or grinding sound. This means the motor is struggling. Sixth, the AC or heater works fine, but the blend door stays stuck. That is a typical actuator issue. Each symptom points to the same problem.
However, do not confuse it with a bad control panel. Always check the actuator first. It is a common failure part. Additionally, some cars show a warning light on the climate display. But most cars do not. So, rely on physical signs. For example, if you turn the temperature knob and hear nothing, the actuator likely failed. If you hear a click but no change, the gear is stripped. In both cases, you need how to test air door actuator procedures. Testing confirms the diagnosis. It also prevents unnecessary part replacement. So, pay attention to these signs. Early detection saves you from extreme discomfort. It also prevents damage to other HVAC components. For instance, a stuck door can block airflow. This makes the blower motor overwork. Then, the motor may burn out. Therefore, act quickly when you notice any of these symptoms.
How to Test Air Door Actuator
Testing an air door actuator is straightforward. You do not need expensive tools. First, locate the actuator. Use the air door actuator location in car guide (in the next section). Second, unplug the electrical connector. Third, use a multimeter set to DC volts. Check the power supply. You should see 5V or 12V depending on the car. If there is no power, the issue is in the wiring or the control module. If power is present, test the signal wires. Many actuators use a 5V reference and a ground.
Some use a LIN bus or PWM signal. For a basic test, you can apply battery voltage directly to the motor pins. Use two jumper wires. Connect positive to one pin. Connect negative to the other pin. The actuator should move. Reverse the polarity to see it move the opposite way. If it moves, the motor is good. Then, the problem might be the position sensor. If it does not move, the motor or gears are bad. Another test involves the climate control system.
Turn the ignition on. Set the temperature to full cold. Listen for movement. Then, set it to full hot. If you hear nothing, the actuator is likely dead. For advanced testing, use a scan tool. It can command the actuator to move. Some scan tools also show actuator position. This method is best for dual-zone systems. Regardless of the method, how to test air door actuator is an essential skill. It saves you from guessing. It also helps you avoid a costly dealer visit. In most cases, the actuator itself fails. So, the test often leads to a simple air door actuator replacement. After replacement, you may need to calibrate the system. But we cover that later.
Location in Car
Finding the actuator can be tricky. It sits behind the dashboard. The exact air door actuator location in car varies by make and model. However, some common places exist. For most cars, the actuator is behind the glove box. Remove the glove box first. You will see a small black or white plastic unit. It has an electrical connector. Sometimes, it is near the center console. On some vehicles, it is behind the radio or HVAC control panel. In trucks, it may be under the dash on the passenger side. But the removal steps are similar. First, disconnect the battery. Second, remove any trim panels. Third, locate the HVAC box. The actuator is attached with two or three screws. It is usually small, about the size of a matchbox.
On some cars, there are multiple actuators. One for the recirculation door. So, check your manual. Or, search online for your specific model. A helpful tip: turn the ignition on. Switch the mode from defrost to vent. Listen for the clicking sound. Follow the sound to find the actuator. This method works well. Once you find it, you can proceed with how to test air door actuator. Then, plan your air door actuator replacement. Knowing the location saves hours of frustration. Therefore, take your time. Use a flashlight. Work in a comfortable position. The actuator is usually accessible without removing the entire dashboard. That makes the job easier.
Installation Guide
Now, here is the air door actuator installation guide. Follow these steps carefully. First, buy the correct replacement part. Check your car’s year, make, and model. Use an OEM or high-quality aftermarket part. Second, gather tools. You need a socket set, screwdrivers, and a trim removal tool. Third, disconnect the battery negative terminal. This prevents short circuits. Fourth, remove the cover or glove box to access the actuator. Fifth, unplug the electrical connector. Push the tab and pull. Sixth, remove the mounting screws.
Usually, there are two or three. Keep them safe. Seventh, pull the old actuator out. Sometimes, it is stuck. Wiggle it gently. Do not force it. Eighth, compare the new actuator with the old one. Check the gear shape and connector. They must match. Ninth, install the new actuator. Align the gear with the door shaft. Push it in. It should fit snugly. Tenth, secure it with the screws. Tighten them by hand.
Do not overtighten. Eleventh, reconnect the electrical connector. Twelfth, reconnect the battery. Thirteenth, test the system. Turn the ignition on. Cycle through all modes. Change temperature from hot to cold. Listen for smooth operation. If the system works, you are done. If not, you may need to calibrate the actuator. Some cars have a reset procedure. For example, on many vehicles, you remove the fuse for the HVAC module for 30 seconds. Then, reinstall it. This resets the actuator positions. Another method: turn the ignition on. Press the defrost and recirculation buttons together for 5 seconds. Then, release. The system will recalibrate. Refer to your manual for exact steps. This air door actuator installation guide works for most cars. It solves the problem quickly. It also ensures proper air door actuator replacement. Use quality parts for long life.
How to Reset Air Blend Door Actuator
Resetting the actuator is sometimes necessary after replacement. A reset tells the system the new actuator’s limits. This is common. The question “How to reset air blend door actuator?” has several answers. It depends on your car. For many GM vehicles, you do this: turn the ignition on. Set the temperature to 75°F (24°C). Then, press the “Auto” and “Recirc” buttons at the same time. Hold them for 5 seconds. Then, you see the lights flash. That means the calibration started. Wait 30 seconds. The system should reset. For Ford vehicles, the method differs. Turn the ignition on. Press the “Defrost” and “Floor” buttons together. Hold for 5 seconds. Release. The system cycles the doors.
For Honda and Toyota models, you often just turn the ignition on. Then, turn it off. Then, on again. The system self-calibrates. However, if it does not, remove the HVAC fuse for one minute. Then, put it back. Turn the ignition on. Let the system run. It will calibrate automatically. Some European cars require a scan tool to reset. But that is rare. For a DIY reset, try the fuse method first. It is safe and easy. Also, check online forums for your specific model. Many owners share their reset tricks.
A proper reset ensures the air door actuator works correctly. Without it, the temperature might be wrong. The doors might not open fully. So, do not skip this step. After following the air door actuator installation guide, perform a reset. It takes only a minute. It prevents future air door actuator symptoms from returning. You enjoy perfect climate control again.
Frequently Asked Questions
What is an air flap actuator?
An air flap actuator is another name for an air door actuator. It controls flaps inside the HVAC box. These flaps direct air. They also blend hot and cold air. The term “air flap actuator” is common in European cars. However, it means the same thing. It is a small motor with plastic gears. It moves the flaps based on signals from the climate control. So, if you hear the term, know it refers to the same part. It is essential for proper heating and cooling.
How do I know if my door actuator is bad?
You can know by checking symptoms. First, listen for clicking noises behind the dash. Second, check for uneven temperature. One side may blow hot while the other blows cold. Third, test the vent modes. If air only comes from one spot, the actuator may be stuck. Fourth, see if the temperature changes slowly. Fifth, look for error codes. You can use a scan tool. But often, the symptoms alone tell you. The air door actuator symptoms list earlier covers all signs. Use that guide. It is reliable.
Conclusion
The air door actuator is a vital part of your car’s climate system. It controls temperature and airflow. When it fails, you face discomfort. You hear strange noises. You feel uneven temperatures. However, the fix is simple. You can diagnose the problem. Use how to test air door actuator steps. Find the air door actuator location in car. Then, perform an air door actuator replacement with our air door actuator installation guide. Also, reset it correctly. This solves most air door actuator symptoms. Remember to choose a quality part. A cheap actuator may fail again soon. So, invest in a reliable brand. Do not delay the repair. A broken actuator wastes fuel. It also strains the HVAC system. Take action today. Your comfort depends on this small motor. By following this guide, you restore perfect climate control. Enjoy your drive again.
