How to Diagnose Problems with Points and Condenser Units

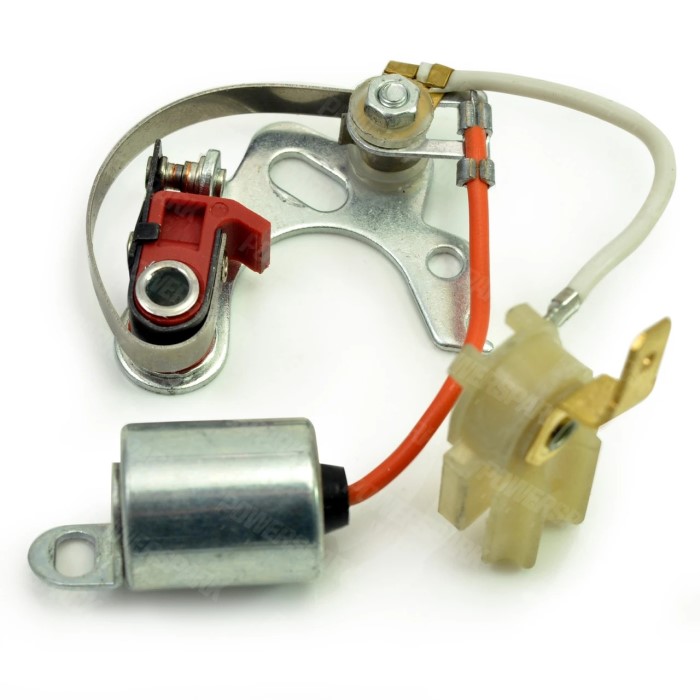

Understanding Points and Condenser Units

Points and condenser units are key parts of older ignition systems. They control the spark timing in the distributor. The points open and close to release a high-voltage spark. The condenser absorbs excess energy. This prevents arcing and prolongs point life.

Many classic cars still use this system. Drivers must understand how it works. Ignition problems often start here. Early diagnosis saves time and money.

You should know the points and condenser issues first. Common ones include rough idle, hard starting, and misfires. Another sign is a weak spark. The engine may stall under load. Fuel economy drops too.

A good points and condenser troubleshooting guide helps you check each part. Start with a visual inspection. Look for burned or pitted points. Check the condenser for oil leaks or bulges. Then test with a multimeter.

Routine maintenance is vital. Replace the set every 10,000 to 12,000 miles. Use quality parts. A best points and condenser for classic cars set ensures reliable performance. Brands like Blue Streak and Standard Motor Products are popular.

Remember that points and condenser replacement is straightforward. You need basic tools. Follow the manual for your car. Clean the distributor cap and rotor too.

Common Symptoms

Recognizing the symptoms early prevents bigger issues. First, the engine may crank slowly. Next, it may start but run rough. You might hear backfiring through the carburetor.

Another symptom is low power. The car struggles to accelerate. Fuel consumption increases. The exhaust may smell rich. These signs point to incorrect timing or weak spark.

A misfire at high speed is common. This happens when points bounce or condenser fails. The engine lags. It may even die. Restarting is hard.

The tachometer may show erratic readings. That indicates erratic point opening. Check the dwell angle. Proper dwell is essential.

Sometimes you see visible blue sparks inside the distributor. That means the condenser is not absorbing. Replace it right away.

Don’t ignore these signs. A bad points and condenser set can damage the coil. It can also cause hard starting. Fix it quickly.

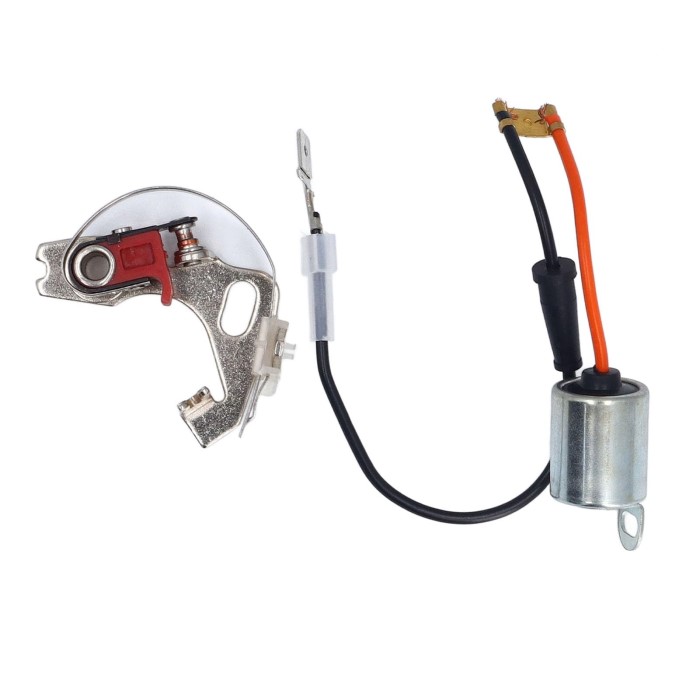

The Role of Points and Condenser in the Ignition System

The ignition system has several parts. The points and condenser work together. The points act as a mechanical switch. They open and close based on the distributor cam lobes.

The condenser stores electrical energy. It prevents sparking at the points. This keeps the points clean. It also helps create a strong spark at the spark plug.

Without a condenser, the points burn fast. Spark quality drops. The engine runs poorly. So the condenser is not optional. It is crucial.

The distributor houses both parts. It also controls timing. Therefore the condition of the points and condenser affects overall engine performance.

How to adjust points and condenser is a common question. Adjustment involves setting the gap. Use a feeler gauge. Turn the engine to the high point of the cam lobe. Then set the gap to the manufacturer specification.

A well-adjusted set provides reliable ignition. It also extends component life. Check the gap every tune-up.

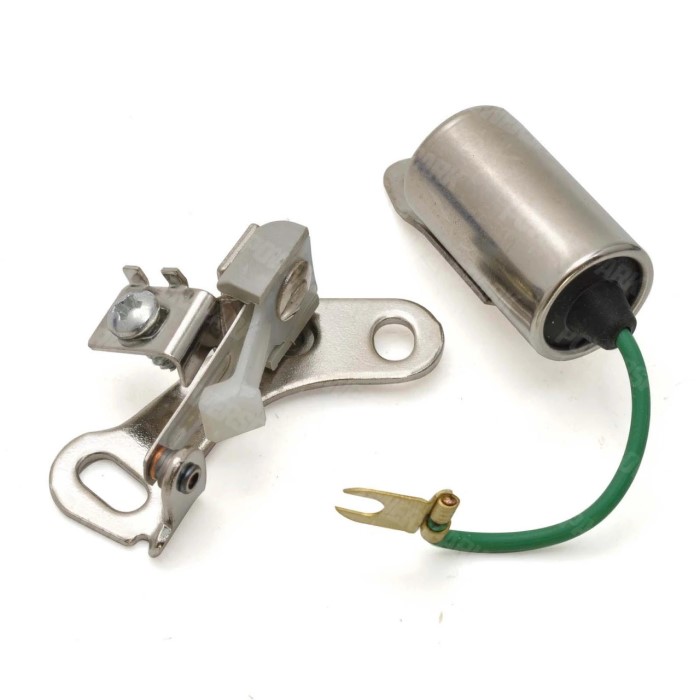

How to Inspect Points and Condenser Components

Inspecting these parts is simple. First, remove the distributor cap. Then take out the rotor. Look at the points. They should have a flat, gray surface. If they are black or blue, they are burned.

Check the point spring. It should be strong. Weak springs cause bounce at high RPM. Replace if needed.

Next, inspect the condenser. Look for cracks, fluid leaks, or bulges. A bulging condenser is bad. Replace it immediately. Use a multimeter to test capacitance. Compare to spec.

Also check the distributor wiring. Loose or frayed wires cause intermittent problems. Tighten all connections.

A points and condenser troubleshooting guide recommends testing with a dwell meter. Set dwell to the proper angle. Too low means point gap too large. Too high means gap too small.

Finally, test spark at the coil wire. A bright blue spark is good. A weak orange spark indicates issues.

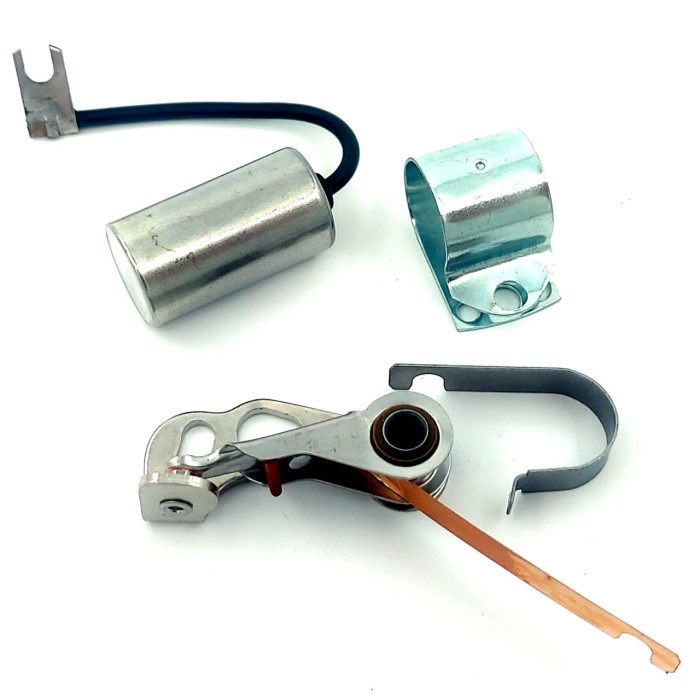

Step-by-Step Adjustment

Adjusting points and condenser is a core skill. Here is how to do it.

Step 1: Disconnect the battery. Remove the distributor cap. Note where the rotor points.

Step 2: Rotate the engine manually. Use a socket on the crankshaft bolt. Stop when the points are fully open. The rubbing block sits on a cam lobe.

Step 3: Loosen the point hold-down screw. Insert a feeler gauge of the correct thickness. Usually 0.016 to 0.020 inches for most engines.

Step 4: Adjust the point plate until you feel a slight drag on the gauge. Tighten the screw. Recheck the gap.

Step 5: Check dwell with a meter. Dwell should be between 30° and 35° for 4-cylinder engines. For 6 or 8 cylinders, check your manual.

Step 6: Install new condenser if needed. Simply connect the wire. Ensure it does not touch the distributor body.

Step 7: Replace the rotor and cap. Reconnect the battery. Start the engine. Verify timing and idle quality.

Proper how to adjust points and condenser steps ensure smooth running. Do this every tune-up.

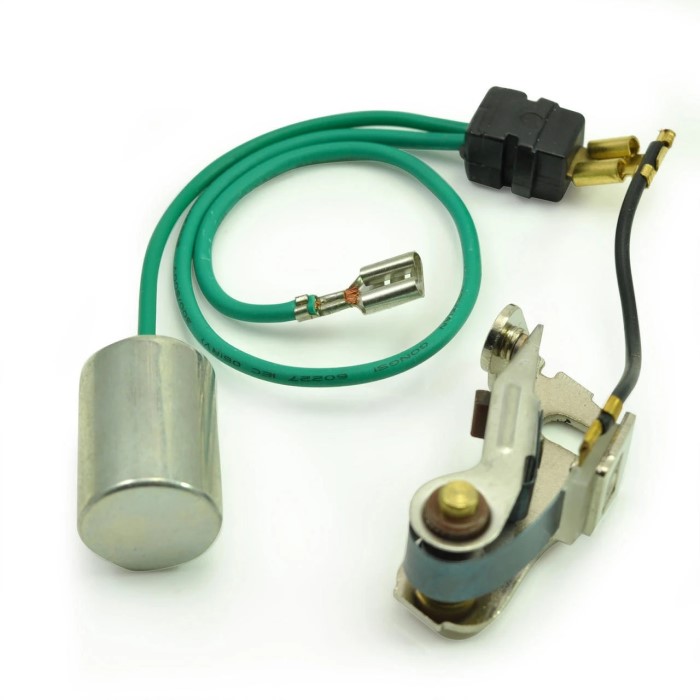

Replacement vs. Restoration: What to Choose

When your points and condenser fail, you have two choices. Replace with new parts. Or restore old ones. Restoration is rarely worth it. New parts are affordable.

Points and condenser replacement takes about 30 minutes. It costs $to$30. Restoration requires filing points. This removes material. It shortens life.

Choose the best points and condenser for classic cars. This keeps the original feel. Many brands offer exact duplicates.

Some drivers convert to electronic ignition. That eliminates points altogether. But purists prefer points. They keep the car authentic.

If you drive a classic car daily, replace every 10,000 miles. Use a high-quality set. Avoid cheap imports. They fail quickly.

Troubleshooting Common Issues

Even with high-quality parts installed in your vehicle, problems can still occur. Below are some common issues associated with points and condensers, along with possible causes and recommended fixes.

Engine Will Not Start

• Possible Causes:
  • Points may not be opening properly, preventing the ignition system from firing.
  • The condenser could be shorted, causing a failure in the ignition circuit.
  • Wiring may be broken or disconnected, disrupting the electrical flow.
• Recommended Fix:
  • Check for continuity in the ignition circuit using a multimeter.
  • If any parts are found to be faulty, replace them as needed to restore function.

Misfire at High RPM

• Possible Causes:
  • Point bounce may occur when the points close too rapidly, leading to inconsistent sparking.
  • A weak spring may not hold the points in place, causing misalignment during operation.
  • The gap between the points might be set incorrectly, affecting ignition timing.
• Recommended Fix:
  • Adjust the gap slightly to see if it resolves the misfire issue.
  • If the spring appears weak, replace it with a new spring that meets the specifications of your ignition system.

Hard Start When Hot

• Possible Causes:
  • The condenser may be failing when exposed to high temperatures, resulting in ignition problems.
• Recommended Fix:
  • Replace the existing condenser with a new unit that is rated for higher temperatures to prevent failure during hot conditions.

Poor Fuel Economy

• Possible Causes:
  • Dwell angle may be set incorrectly, leading to inefficient ignition timing.
  • Timing might be off, which can affect overall engine performance and fuel consumption.
• Recommended Fix:
  • Recheck the dwell angle and timing adjustments to ensure they are set to the manufacturer’s specifications.

Frequently Asked Questions

What are the symptoms of bad points and condenser?

Bad points and condenser cause several symptoms. The engine may misfire at idle. It can stall under load. Starting becomes difficult. You may see black smoke from exhaust. The car may backfire. Spark plugs look fouled. A weak spark is a clear sign. Use a spark tester to confirm.

What is the difference between points and condenser and distributor?

The distributor is the housing. It contains the points, condenser, rotor, and advance mechanisms. The points and condenser are individual components inside the distributor. The points open and close to trigger the coil. The condenser absorbs voltage spikes. The distributor itself rotates and directs spark to the correct cylinder. So they work together but are separate parts.

How to gap points and condenser?

Gapping points means setting the distance between the open point contacts. You need a feeler gauge. Rotate the engine until the points are fully open. Loosen the hold-down screw. Insert the correct gauge. Adjust the point plate until you feel slight drag. Tighten the screw. Recheck. Gap is typically 0.016–0.020 inches. Condenser does not require gapping. Just install it correctly.

Final Tips for Long Life

Keeping your points and condenser in good shape is simple. Inspect them regularly. Clean the distributor interior. Replace the set on schedule.

Always use a best points and condenser for classic cars set. Buy from trusted suppliers. Follow a points and condenser troubleshooting guide for issues.

Learn how to adjust points and condenser properly. This skill saves you money. Stay aware of points and condenser issues. Early detection prevents breakdowns.

Perform points and condenser replacement when needed. Your engine will thank you. Enjoy smooth runs and classic reliability.
